As the winter months approach, you may begin to wonder about the efficiency of your solar water heater, especially given its reliance on sunlight. These systems are manufactured with advanced technology and effective insulation. But, does solar water heater work in winter? In this article, we’ll delve into its operation and explore the reasons behind its reliability.

Does Solar Water Heater Work in Winter?

Yes, solar water heater work in winter, due to their effective insulation. This allows them to take advantage of radiator fluid technology in cold temperatures. However, the system’s efficacy can vary depending on the availability of solar energy at the location and the initial temperature of the water entering the system.

They have freeze protection to melt snow on the collector faster than on the rest of the roof. However, solar water heaters may not provide as much hot water during the winter months as compared to summer.

They can heat 60-80% of water in a year. Between April and September, the majority of hot water will be heated by solar power. But do not expect solar water heaters to fully replace your water heater.

Cross-Reference: Solar water heating

Will Solar Water Heaters work in Below Freezing Point with Weak Sunlight?

Yes, they will. During winter, the proportion of hot water heated by the sun decreases to as little as 10-20%, which is not surprising given the short days and weak sun in December. That’s why virtually every solar water heating system installed in the US is connected to a conventional water heater backup to guarantee continued hot water supply, even during the colder months.

Do Solar Water Heaters Work on Cloudy and Rainy Days?

Yes, they can generate warm water even on cloudy and rainy days by using diffused radiation. It is recommended to connect the solar system to an electric geyser or have an electrical backup in the storage tank for consistent hot water on days with insufficient warmth.

It is normal for them to face reduced effectiveness during extended periods of cloud cover. However, these systems often feature built-in safeguards to tackle this issue. They are as follows:

1. Electric boosters can activate when the water temperature drops, ensuring the desired temperature.

2. Gas-boosted water heaters raise water temperature as it flows through them. They work with solar-compatible systems and use temperature sensors to ignite and raise the water temperature when it’s too low.

The choice of the appropriate booster depends on the system used, the climate conditions, and the angle of the roof. Therefore, we can say that solar water heaters work on cloudy days but may not perform at peak during prolonged cloudy periods. For a deeper understanding, let’s delve into how does solar water heater work in winter months.

Also See: Solar Underfloor Heating Guide: Everything You Need to Know

How Does a Solar Hot Water System Work?

To further elaborate, solar water heaters generally heat water in 2 ways:

1. Evacuated Tube Collectors: They are made up of either metal or glass and work like a thermos. They contain water or a heat transfer fluid and are enclosed by a bigger glass tube, and the vacuum between them reduces heat loss. These collectors can work efficiently even in overcast situations and at extreme temperatures (as low as -40° F). Although they may cost more, they offer the advantage of replacing individual tubes when necessary.

2. Flat-Plate Collectors: Copper tubes are connected to flat absorber plates in an insulated box with tempered glass on the outside. They hold around 40 gallons of water and can meet the hot water needs of a four-person household.

So, we now know that solar water heaters can work in winter, but when the water temperature is low, you can use an electric heating device to solve the problem. Now let’s look at how this electric heating works.

Also See: How to Check If Solar Hot Water is Working

Water Heater Auxiliary Electric Heating Working Principle

Take a look at these points to understand its working principle:

  • A thermostat regulates heating by switching on/off.
  • Insulation typically requires short periods of heating.
  • The water heater uses full power when turned on.
  • If the water temperature drops below 50° C, the temperature controller activates.
  • When the water heater reaches a temperature between 75° and 85° C, the thermostat stops heating the water.

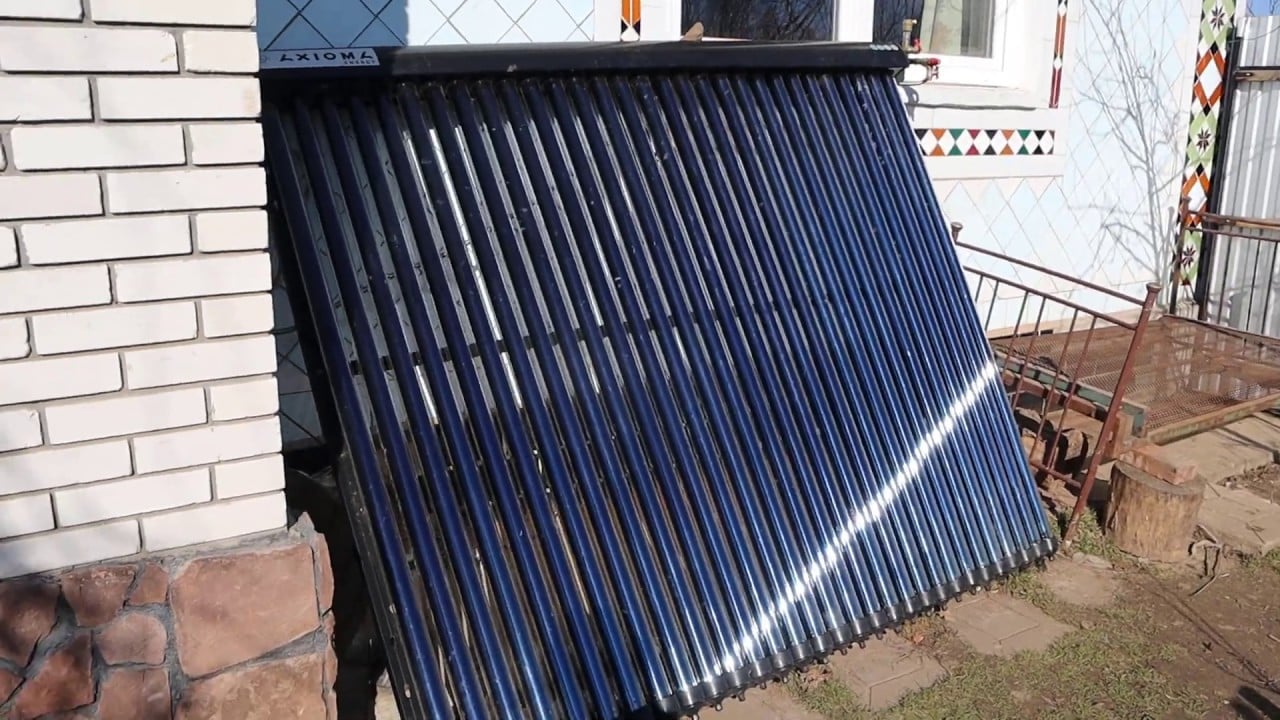

How does a solar water heater work in winter ? It works! Now is +49 in radiator. 21.02.2020

What Affect the Working of Solar Water Heaters in Winter?

Multiple variables can reduce the effectiveness of a solar water heater throughout the winter.

  • Day Length: During the winter months, especially around December, with shorter days and lower sun, its effectiveness may decrease below 10-20%.
  • Quality of Tubes: Some manufacturers make low-quality vacuum tubes, which can affect the thermal efficiency of a water heating system.
  • Anti-Freezing: Insufficient anti-freeze capabilities can cause ineffective water tank insulation and freezing pipes, interrupting hot water circulation.
  • Incorrect Installation: Additionally, this can compromise their performance from the first day.

Also Read: Does a Solar Water Heater Work at Night?

How to Improve Solar Water Heater Temperature in Winter?

You can do so through the methods listed below:

  • Using an additional electric heater (Auxiliary electric heating)
  • Connect a heat retention device to the water supply line.
  • During installation, place the water heater at an appropriate angle.
  • Installing a reflected light device at the bottom of the vacuum tube.

While researching the ways to improve the water temperature of solar water heaters in winter, you should also learn how to turn off a solar hot water system for safety and maintenance.

Do Solar Water Heaters Work Better in Summer than in Winter?

Solar water heater: how does a solar hot water system work

Yes, they perform better during summers than winters. Solar hot water systems can meet your hot water needs in the summer. However, their production decreases to less than 25% in winter.

Ultimately, you can rest assured that your solar water heater does work in winter, providing warm water and contributing to a more sustainable environment. With insulation, advanced radiator fluid technology, and anti-freeze measures, solar water heaters ensure a consistent hot water supply throughout the year, regardless of the weather conditions.

Do you know the solution to these 10 Common Problems With Solar Hot Water Systems?
