Solar panels offer sustainable energy and have the ability to charge and store their power in batteries for future use. This blog will explain how to charge multiple batteries with one solar panel and the considerations involved in achieving this.
How to Charge Multiple Batteries with One Solar Panel

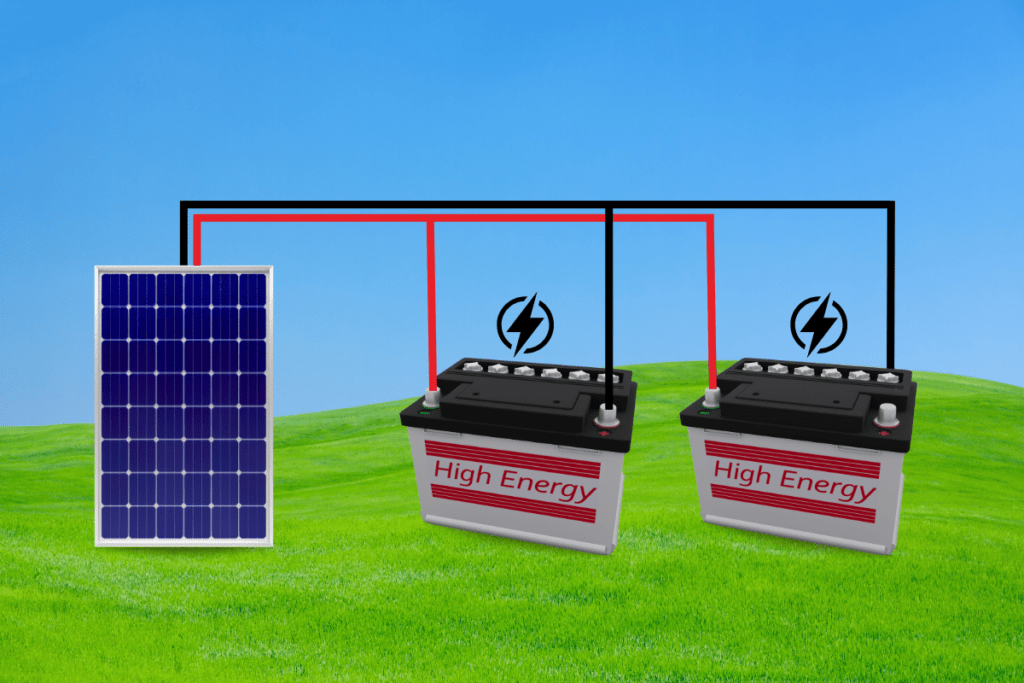

There are three simple ways to charge a battery with a solar panel: parallel linkage, series linkage, and a combination of both these techniques. Each has its benefits and requires different connections.
1. Parallel Linkage
Here, you have to attach the positive poles of two batteries together and the negative poles as well. This enhances the overall energy capacity while maintaining the same voltage level across the terminals. For example, if you have two 14-volt batteries with 150-Ah each, connecting them in parallel will give you a higher capacity of 300Ah. This allows your appliances to run for longer periods of time. Moreover, make sure you install a fuse between each battery to reduce the risk of electrical faults.
2. Series Linkage
In this method, you have to attach the positive terminal of one battery to the negative terminal of the other battery. In a series connection, the voltage of the batteries adds up while the capacity (flowing current) remains the same. For instance, if you have two 9-volt batteries with a capacity of 100Ah each, connecting them in series will give you 18 volts. Series connections are useful for reducing energy losses and optimizing solar system efficiency. It is also important to employ a charge controller in the system to regular energy flow and avoid overcharging or overheating issues.
3. Series and Parallel Combo Method
This combines the positive aspects of both series and parallel connections. Firstly, connect the batteries in series by attaching the negative terminal of one battery to the positive side of the other. Next, add the batteries in parallel connections as mentioned in the parallel linkage method. This series-parallel combo technique doubles the energy capacity and voltage, making the solar panel system highly efficient.
If you have different batteries that need to be charged separately, you will need two different charge controllers for your power setup. This is because each charge controller can charge one battery at a time. So, connect the solar charge controllers to the separate batteries that need recharging.
Make sure you use the same size cables for both series and parallel connections and keep them short to reduce energy loss. Shorter cables are mostly used for solar installations as they have minimum resistance when the electrical current pass through them, improving the efficiency of the whole setup.
Now, you are aware of how to charge two batteries using one solar panel. By understanding these simple ways to charge a battery with a solar panel and applying them correctly, you can improve and make the most of your battery capacity. This also enhances the overall performance of your solar panel system.
Also See: Solar Battery Charging Basics: Maximizing Efficiency and Safety
How many Solar Panels to Charge Two Batteries?
You can easily charge two batteries with one panel, but the size of the solar panel will determine the charging time. A solar panel, smaller in size will take longer to recharge the batteries compared to a larger one.
For instance, let’s assume you are given two units of 100Ah 12V batteries and a 100-watt solar panel. If both these batteries are empty and require a total of 2400 watts to fully charge, the 100-watt solar panel can produce up to 500 watts in a day if exposed to sunlight for 5 hours.
So, based on the requirement, it would take the 100-watt solar panel approximately 5 to 6 days to fully charge the two 200Ah batteries. Here we are assuming an average of 5 hours of sunlight per day and producing around 400 to 450 watts on a daily basis. You will also have to consider power loss and the efficiency rate of the panel.
However, if you have three units of 100-watt solar panels, you could generate up to 1500 watts in a day, with five hours of sunlight. Even, after eliminating the power losses, if the daily output is only 1200 watts, a 300-watt solar array could charge two batteries in around two days.
Note that these calculations are based on the assumption that the batteries are fully empty. Most deep cycle batteries have a 50% depth of discharge rate and if you don’t fully discharge them, the charging duration will be much lesser. However, for efficient charging, you will need a charge controller that will also prevent overcharging. To determine the suitable charge controller for your setup, find the total wattage of the solar panels divided by the battery voltage, then add 25%.
Therefore, you can charge two batteries with one solar panel. However, having more panels with higher capacity will take less time to recharge the batteries. So, if you want the batteries to recharge faster, invest in a larger solar panel or combine several smaller ones.
Also Read: What is the Best Way to Charge a Solar Battery?
How Long Batteries take to Charge?
The time it takes to recharge batteries depends on a few parameters. One of the most important is the positioning and orientation of the solar panel. For fast charging, place your panel in a spot that receives direct sunlight, for most of the day. When a solar panel operates at peak efficiency under optimal weather conditions, it can completely recharge a depleted battery in around 6 hours. Thus, ensure your panel is positioned correctly for maximum sunlight exposure with no obstructions or shades coming in between.
However, on cloudy or rainy days, when there is limited sunlight, the charging rate may decrease. If you are uncertain about the correct placement of your panel or the amount of sunlight it is receiving, you can use a solar tracker. Solar trackers are devices that can help in maximizing the charging efficiency of your panel by optimizing its positioning.
Also See: How Long Does a Solar Battery Last at Night?
How do I Know if a Solar Panel is Charging a Battery?
To find out if a solar panel is charging a battery, you can rely on a charge controller. The charge controller is a device that not only has regular charge flow but protects the battery as well. You can monitor the level of current flowing into the battery and its voltage level by looking at the display screen of the charge controller. For instance, lead acid batteries usually have a voltage of around 14.4 volts when completely charged. The voltage reading may vary with the type of charge controller.
Another way to check if the battery is charging properly is to record the battery voltage before connecting it to the panel. After some hours of charging, check the battery indicator and monitor if the voltage is higher than before.
In case your solar panel or battery is not charging, check the cables that connect the panels, batteries, and charge controller. Ensure there are no loose connections, as they can disrupt or degrade the charging rate. If the wires are in good condition, try resetting the charge controller after reading its user guide. In most cases, resetting the controller resolves this issue. If not, check if the solar panel is not damaged or getting sufficient sunlight during the daytime. Similarly, check the condition of the batteries, as charging issues are common with older batteries.
Remember that solar panels, batteries, and charge controllers typically come with warranties and for any issues, you can contact the manufacturer for guidance and potential replacement.
Applying the charging techniques correctly can enhance system performance and maximize battery capacity. To achieve faster charging, consider investing in a larger panel or combining multiple smaller ones. For more solar content, keep browsing our website.
