The open-circuit voltage, also known as VOC, represents the highest voltage that can be obtained from a solar cell. This voltage is achieved when there is no current flowing through the cell. The open-circuit voltage is a representation of the level of forward bias on the solar cell, resulting from the junction bias between the solar cell and the current generated by the sunlight. It is a vital parameter extensively used in the field of electrical engineering. Voc finds applications in various electronic systems, including solar cells, batteries, sensors, and electronic circuits.
You can locate the VOC information either directly on the panel itself or on a label attached to the back of the panel. Alternatively, you may also find this information on the panel’s specifications, which can be obtained from the retailer or manufacturer.
It is the maximum voltage produced by a solar panel under Standard Test Conditions (STC). It’s important to remember that Voc represents the maximum voltage a solar panel can produce under standard test conditions. The ideal test conditions for this include:
- A cell temperature of 25° C
- A light intensity of 1000W/m2
- An atmospheric density of 1.5
Why Measuring Open-Circuit Voltage is Important?
It is important to measure Voc due to the following reasons:
- By connecting multiple solar panels in series, their open-circuit voltages are combined, resulting in a higher total voltage output.
- Voc is important to determine the maximum number of PV panels that should be connected to the inverter or charge controller without overloading them.
- Without accurate open circuit voltage measurement, the voltage limit may increase leading to immediate inverter or charge controller failure. In the worst-case scenario, it can damage them too.
Usually, the morning is the optimal time to measure Voc as it coincides with the moment when the first rays of sunlight make contact with your panel. It is the time when the solar panel is at its coolest state, resulting in the highest open circuit voltage.

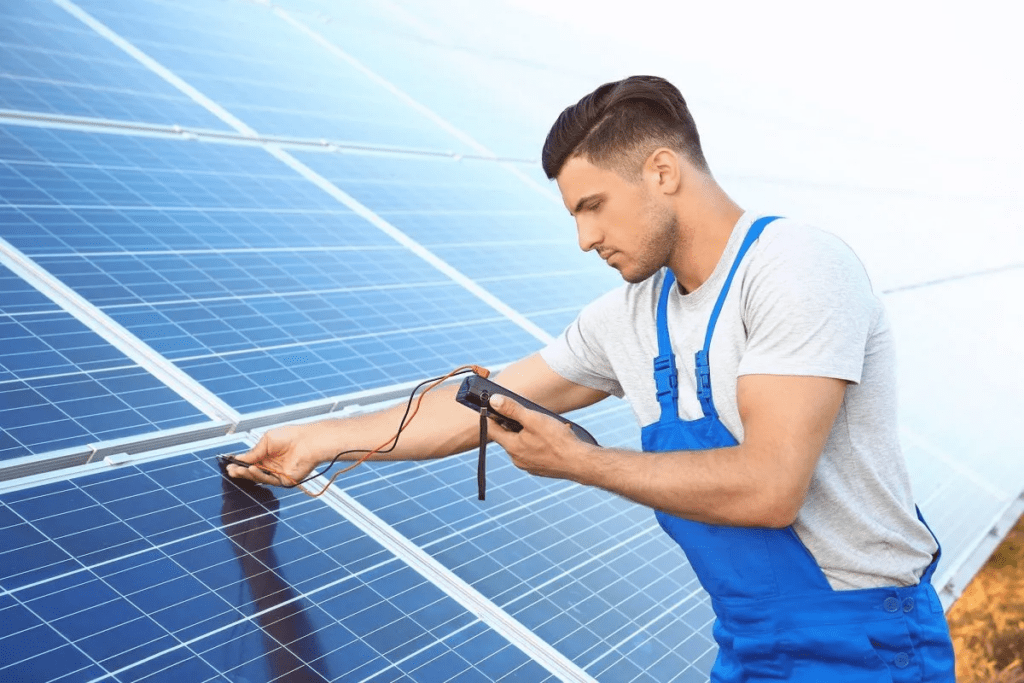

To determine the open-circuit voltage (Voc) of the panel, all you need to do is measure the voltage across the positive and negative terminals with a voltmeter.
Also Read: How to Calculate Voc of Solar Panel
What Are the Applications of Open-Circuit Voltage (Voc)?
In the realm of solar cells, Voc plays a crucial role.
- It helps in determining the cell’s maximum power output.
- It represents the highest voltage the cell can deliver when no load is connected.
- Engineers and researchers utilize Voc measurements to evaluate the efficiency and performance of solar cells under different operating conditions.
- A higher Voc value suggests minimal internal losses, which is desirable for efficient energy conversion.
- Voc also holds significance in battery technology.
By measuring the open-circuit voltage, one can estimate the state of charge (SoC) of a battery, indicating the remaining energy it can deliver. This information aids in effectively managing and utilizing battery systems. Comparing the measured open-circuit voltage with reference charts allows for accurate SoC estimation and ensures optimal utilization of battery capacity.
