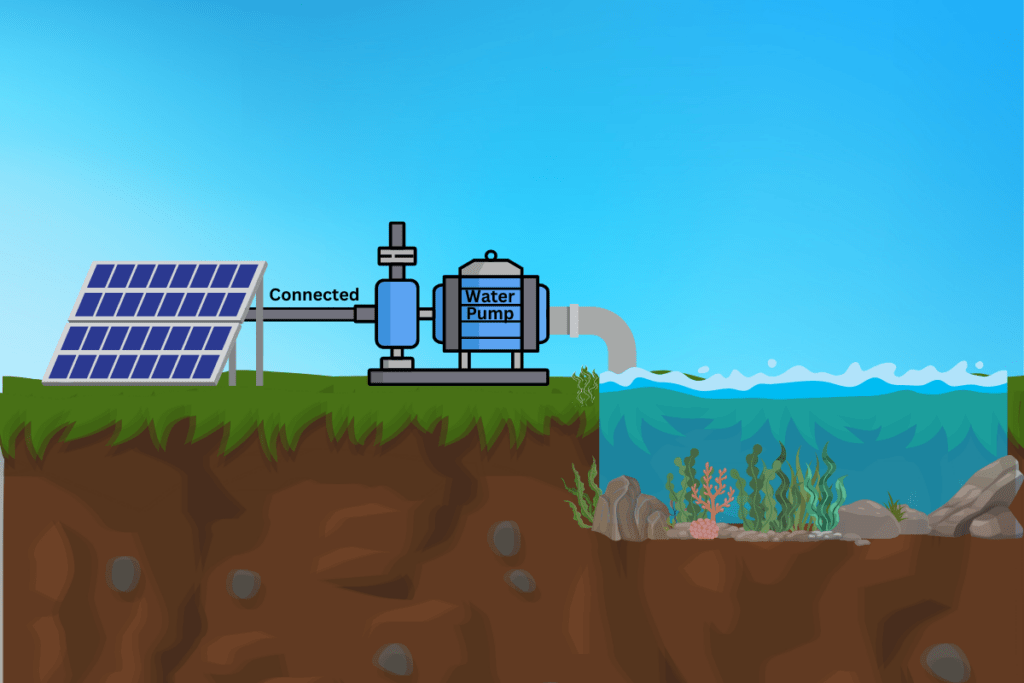

How to Connect Solar Panel to Water Pump

In the age of sustainability, opting for solar energy to power essential systems like water pumps is a smart and innovative choice. In this guide, we will explain how to connect a solar panel to a water pump so that you can easily draw power using sunlight.

How to Connect Solar Panel to Water Pump

Water pumps play a vital role in our lives, helping us move water in different ways. Whether it’s a simple hand crank pump or a complex system providing water to many, pumps serve two main purposes: moving a large amount of water swiftly and lifting water against gravity’s pull.

If you need a water pump for either of these purposes, you might be curious about connecting a solar panel to power it. The steps below explain how to connect a solar panel to a water pump.

Step 1: Positioning for Maximum Sunlight

Begin by determining the optimal angle for your solar panels to receive the most sunlight. If you don’t know how to calculate solar panel tilt angle, check out this link. Remember, more sunlight hitting the panel means more power for your pump. If your water pump is near your home, utilizing rooftops for panel placement is a good option. For outdoor pumps, a durable off-ground support structure of appropriate size for the panel array is recommended. Make sure to protect the metal parts of the support structure from corrosion with anti-rust or anti-corrosion paint.

Step 2: Installing the Solar Array

Place the solar array either on your rooftop or on the off-ground structure you’ve set up. Make sure the solar device you’re using can provide sufficient power for your water pump. If needed, consult your pump distributor to determine the right-sized panel for your pump’s needs.

Step 3: Incorporating a Power Inverter and Battery

Integrate a power inverter into your setup. The inverter transforms the solar energy (DC) into electricity that can be used to power your water pump, which usually operates on alternating current (AC). After connecting the power inverter to the solar panel, consider attaching a storage battery. While this step is optional, it helps store excess power, ensuring your pump can run even when the solar panel isn’t generating electricity. Connect the inverter to the battery using appropriate wires and an electric shunt. To ensure safety, store the battery in a secure, dry location away from water and outdoor elements.

Step 4: Linking Battery to the Water Pump

Connect the wires from the battery to the AC connection points on the water pump. Make sure to follow the instructions provided with the pump to correctly install the battery connection wires. Cover any exposed wires using waterproof tape or plastic caps. Finally, adjust one solar panel to allow the direct current (DC) to flow into the converter.

By following these steps, you’ll be able to effectively power your water pump using the energy harnessed from your solar panel system. After understanding how to connect a solar panel to a water pump, you might ask if you can connect a solar panel directly to an AC or DC water pump.

Also Read: How to Connect Solar Panel to Battery Without Charge Controller

Can You Connect a Solar Panel Directly to an AC or DC Water Pump?

While it’s technically possible for you to connect a solar panel directly to an AC or DC water pump, it’s not advisable to do so.

Solar panels’ irregular output can damage the pump over time, shortening its lifespan. This is especially true if the pump is designed for AC voltage. So, to avoid damaging your pumps and panels due to a direct connection, you can use:

• Solar Inverter: Use it for connecting an AC pump to a solar panel. Since solar panels generate DC voltage, connecting them to AC pumps directly can cause rapid burnouts. A solar inverter prevents this. It converts DC to stable AC voltage, along with a battery backup for consistent power.
• Solar Charge Controller: Use it for solar panel-to-DC pump connection to prevent voltage spikes.

Also See: Solar Panel for Pool Pump Installation, Operation and Benefits

How Does a DC Pump Work With a Solar Panel?

A DC pump is a machine that moves water within a closed system. It gets its energy from a solar panel, which changes sunlight into power.

Electric current moves between these two gadgets due to their distinct voltage levels. Solar panels usually have about 16 volts, whereas pumps typically run on only 12-14 volts maximum. This voltage difference makes energy shift from one to the other until they both run as they should. This explained how a DC pump works with a solar panel. Now, let’s find out how to connect a DC pump to a solar panel.

Also See: How to Check Solar Panel Polarity

How to Connect a DC Pump to a Solar Panel

Since you are aware of how to connect a solar panel to the water pump, aren’t you curious about connecting a DC pump to a solar panel? For this connection, you’ll need:

• Red and Black Cables
• A 12V DC Solar Water Pump
• Optional Component: Battery with Charger

Follow these steps for successfully making the connection:

Step 1: Attach one end of the hose from the pump to an open slot in the battery charger.

Step 2: Connect the other end of the hose to the location where standard household faucets are situated. This allows residual electricity from the batteries to flow, which the pump will use. For a single DC-powered system (e.g., a small pond or fountain), you can directly attach a single solar cell to its frame without backup batteries.

Step 2: Connect the black cable to the negative connector on the solar water pump. Attach the other end to a nearby metal part that touches the battery, and secure it by twisting clockwise.

Step 3: Take another piece of wire and connect one side to where the first piece of wiring was attached. Connect the other end of this wire to an open slot on the battery charger.

Step 4: Plug in the power supply for both devices once the wiring is done correctly. This step is crucial because, without sufficient voltage, the devices won’t function.

By following these steps, you can effectively connect a DC pump to a solar panel, enabling the pump to operate using solar energy.

Also Read: What Happens if a Solar Panel is Not Connected?

How Many Solar Panels Do You Need to Power a Water Pump?

You need at least one solar panel to operate a single water pump. The reason for this lies in the type of energy solar panels generate, which is direct current (DC), rather than the alternating current (AC) used by most appliances in homes.

Because solar panels produce DC power, you’d need an inverter to convert it into AC, the type of electricity that household devices utilize.

Moreover, when it comes to pumps, most of them operate at 12V or 14V. This means that for them to function properly, multiple solar panels must be connected. This is essential because individual panels might not generate sufficient voltage unless they receive ample sunlight.

If the devices don’t receive enough electricity, they won’t function as intended. The number of panels you require also depends on the amount of power necessary for pumping. For instance, larger pumps might manage with their own dedicated solar panel, while smaller ones might not.

Additionally, check out How Many Solar Panels to Run a Pool Pump?

In conclusion, connecting a solar panel to a water pump offers an eco-friendly and effective solution. By ensuring correct wiring and system setup, you can harness solar energy to power your water pump. Additionally, note that for optimal performance, connecting multiple panels might be necessary. To further enhance your understanding of solar energy, you can explore our other informative blogs.
