In this comprehensive guide, we’ll explore the critical factors that define the performance and efficiency of solar inverters. From input and output power ratings to waveform types, tracking technologies, and communication features, understanding these solar inverter specifications is essential for optimizing solar power.

Solar Inverter Specifications for Home Users

The solar inverter is an important part of a solar energy system, responsible for converting the DC current generated by panels into usable AC electricity for our households and businesses. To ensure the inverter operates properly and powers the essential devices, it is crucial to understand the solar inverter datasheet explained below. In this guide, we will break down the components of solar inverter specifications for home and commercial sectors and discuss them in simple terms.

1. Input Specifications

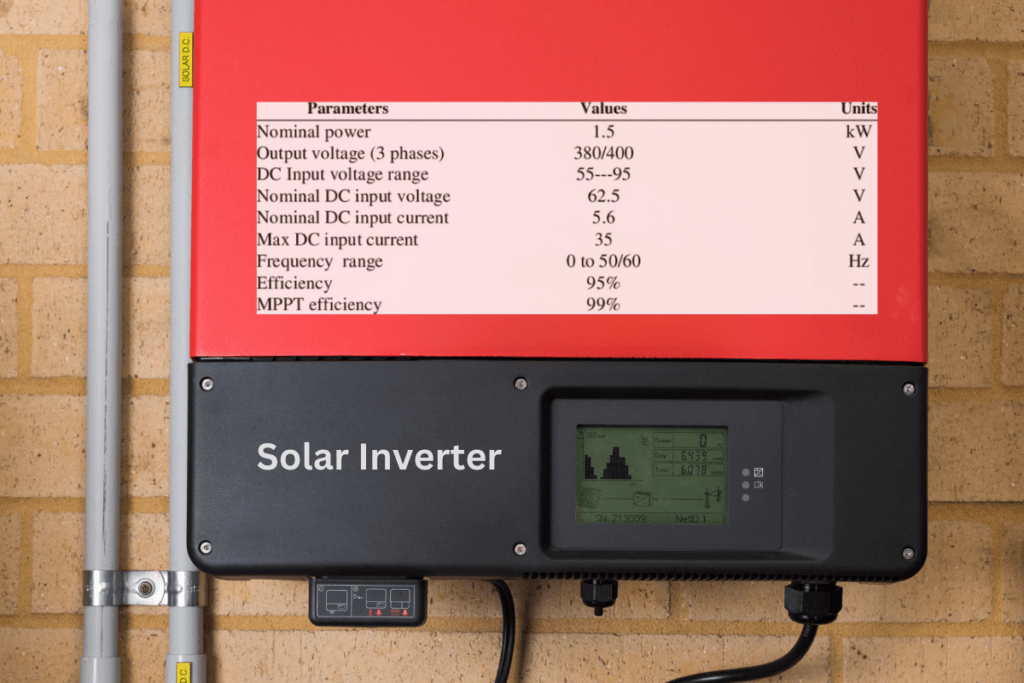

Inverter pic

The input specifications of an inverter concern the DC power originating from the solar panels and how effectively the inverter can handle it.

A. Maximum DC Input Voltage

The maximum DC input voltage is all about the peak voltage the inverter can handle from the connected panels. The value resonates with the safety limit for the inverter. Additionally, make sure that the voltage of the solar panel doesn’t go beyond this limit, or else the inverter could get damaged.

B. MPPT Voltage Range

Maximum Power Point Tracking or MPPT refers to the optimal voltage level at which the inverter can extract the most power from the solar panels. So, for efficient power conversion, ensure that the voltage of the panel solar panel’s voltage matches this potential range.

C. Maximum DC Input Current

This maximum DC input current refers to the maximum flow of electric current that the inverter can pass without getting overloaded. We must check the current range of the solar panel and make sure it does not exceed the maximum range to avoid overloading the inverter.

D. Start-up Voltage

The start-up voltage is the minimum voltage potential needed for the inverter to start functioning. For effective performance, it is recommended to confirm if the solar panel’s voltage is suitable for the inverter to operate properly.

E. Maximum Number of DC Inputs

There are certain inverters that can handle multiple units of panels. The maximum number of DC inputs specification highlights the number of panel sets we can attach to the inverter. This calculation is very useful during installing larger solar panel systems.

Also See: Enphase IQ7 vs IQ8: Exploring the Next Generation of Solar Microinverters

2. Output Specifications

Now, let us learn about the AC power the inverter generates from the output of the solar panel, which is what we use to power our appliances.

A. Nominal AC Output Power

The nominal AC output power refers to the peak power the inverter can continuously supply to the main grid under normal conditions. It is almost similar to the rated power output of the inverter.

B. Maximum AC Output Power

As explained in the solar inverter specifications, this maximum AC output power is the maximum power the inverter can produce and deliver for a short duration. This is very useful during peak demand times when we connect numerous loads.

C. AC Output Voltage Range

The AC output voltage range is all about the ideal range of voltages that the inverter can produce for connecting to the main grid. It is crucial to maintain the output voltage of the inverter that supports the grid requirements for a stable connection.

D. Grid Connection Requirements

Different manufacturers design their inverters with specific grid connection requirements. So, as a user, understand the inverter’s specifications and make sure it aligns with the voltage and frequency levels.

E. Power Factor Range

The power factor indicates the efficiency with which the inverter converts solar DC power into usable AC power. This range demonstrates the inverter’s capability to maintain stable power to run multiple devices.

Also Read: Will a 750 Watt Inverter Run a Refrigerator?

3. Efficiency Specifications

inverter: How to Read Solar Inverter Specifications

The inverter efficiency determines the amount of solar energy that is transformed into useful power.

A. CEC Efficiency

CEC stands for the California Energy Commission and this efficiency rating shows us how efficient the inverter is under standardized testing settings. The higher the CEC efficiency, the better the solar inverter operates.

B. Euro Efficiency

The Euro efficiency is another grade of rating the system, especially important for European testing standards. Moreover, comparing both CEC and Euro efficiency values can guide us to understand the entire efficiency of the inverter.

Also See: 16 Ways to Increase Solar Panel Efficiency

C. Nighttime Power Consumption

Even in limited sunlight during winter, the solar inverter still needs just a small amount of power to function. The nighttime power consumption specification enlightens us about the amount of power the inverter draws during idle hours.

D. Maximum Efficiency

In the solar inverter datasheet, the maximum efficiency specification indicates the highest rating of efficiency the inverter can achieve. This is important for optimizing power conversion and reducing energy losses during operation.

If you are using an Origin Solar inverter, you can make a note of its features. The transformer has a maximum efficiency of about 95.6% and isolates the primary and secondary circuits. It operates in a wide temperature range from around -25°C to +60°C and also allows RS485 communication. The inverter specifications for home users also include intelligent MPP tracking that optimizes the solar panel power output and is ideal for both indoor and outdoor applications.

Cross-Reference: Specifications of Origin Solar System Inverter

4. Protection and Safety Features

inverter: solar inverter specifications

Solar inverters should have built-in safety functionalities to secure the system and each of its components.

A. Overcurrent Protection

This overcurrent protection functionality keeps the inverter and other system components safe by preventing damage due to the flow of excessive current. It automatically shuts down the system or cuts the output power if the current exceeds the safe limit.

B. Overvoltage Protection

This feature protects the inverter and its connected devices from damage by preventing excessive voltage levels, especially during voltage surges or thunderstorms.

C. Ground Fault Protection

This ground fault protection feature detects and isolates electrical faults caused by an unintended connection between an energized conductor and the ground. This improves safety in the circuit by reducing the risk of electric shocks.

D. Arc Fault Circuit Interrupter (AFCI)

An AFCI is a safety device that detects and minimizes the cause of fire caused by electrical arcs. If this feature is mentioned in the datasheet, it means AFCI  is already installed in the setup.

E. Anti-Islanding Protection

Anti-islanding protection specification ensures the solar inverter automatically shuts down during a power outage. This feature prevents the inverter from delivering electricity back to the grid during power outages, which could be dangerous for utility workers.

Also See: How to Reset Inverter Overload

5. Operating Conditions and Environmental Specifications

inverter 3

These specification data highlight the inverter’s performance under different circumstances and device settings.

A. Operational Temperature Spectrum

The operational temperature spectrum tells us about the ideal ambient temperature for the inverter to function properly. For best performance and reliability, we must confirm that the inverter can withstand the expected temperature range of the solar site.

B. Relative Humidity Range

Some solar inverters are designed to handle certain levels of humidity. The relative humidity range defines the humidity levels within which the inverter can continue its operation smoothly.

C. Altitude Limitations

Altitude limitations tell us about the maximum height above sea level at which the solar inverter can effectively operate. If you live in a high-altitude area, you need to check if the inverter can handle it.

D. Cooling Method

The cooling mechanism explains how the inverter dissipates the heat produced during operation. By understanding this cooling method, you can better analyze the thermal management capabilities of the inverter. Common cooling methods include air cooling and liquid cooling.

E. Environmental Certifications

Some solar inverters have certifications such as IP or Ingress Protection ratings and UL or Underwriters Laboratories. These represent the inverter’s capacity to fight against elements such as dust, water, and other environmental variables, ensuring its durability for specific applications.

Also Read: 32 Troubleshooting Solar Inverter Problems and Solutions

6. Monitoring and Communication

inverter: How to Read Solar Inverter Specifications 1

Efficient monitoring and communication features help us monitor the performance of solar panel systems.

A. Data Monitoring and Logging

Data monitoring and logging allow us to track the performance of the solar panel system. The inverter collects the data on energy production and efficiency and analyses them for optimizing the system.

B. Communication Interfaces

Solar inverters are equipped with various communication connectors that allow them to link to external devices or monitoring devices. Wi-Fi, Ethernet, RS485, and other popular interfaces are available. To integrate the inverter with your desired monitoring system, you can examine the specs of the inverter for compatible interfaces.

C. Compatibility with Monitoring Systems

You must ensure that the specifications of solar inverters align with the monitoring systems or platforms. If the inverter’s specifications specify compatibility with specific monitoring systems, it simplifies integrating the solar panel system into a comprehensive monitoring and management setup.

Apart from these specifications, solar inverters may have some additional features like NEMA Rating, Total Harmonic Distortion, and weatherproof enclosures for outdoor installation. There are some inverters that even have a transfer feature to switch between grid power and backup power sources like batteries or generators during downtime.

Additionally, for monitoring purposes, you should know how to read inverter displays since some inverters have display panels that indicate the system’s status and can send desired data to remote locations. However, the features and specifications of solar inverters can vary with models, so it is essential to choose the device that suits your specific needs and preferences for the solar energy system.

To sum up, solar inverter specifications provide valuable insights into its capacity, efficiency, and safety features, ensuring seamless integration with solar panels and connected devices. By familiarizing ourselves with the inverter datasheet, we can make informed decisions. For more interesting solar topics, keep exploring our website.
