Uninterruptible Power Supply (UPS) offers continuous backup, and when combined with solar panels, they ensure uninterrupted energy solutions. However, solar energy often faces challenges in maintaining seamless output, especially during grid disturbances. This article delves into the benefits, concerns, and intricacies of solar panel connection with UPS.

Can I Connect Solar Panel to UPS?

Yes, you can establish a direct connection between solar panels and an Uninterruptible Power Supply (UPS), ensuring backup power during downtime. The UPS can harness solar energy to charge its battery when the main grid is not available. By doing so, you can add Solar to your UPS System, securing a consistent power supply for homes or offices during emergencies.

Let’s take a look at a few considerations when dealing with UPS systems:

  • When upgrading to a new battery, it might be required to remove the battery cables from older UPS systems.
  • Note that the controller in a UPS system might have a limitation of 10 amps of current, so a direct connection of battery wires to the battery might be necessary.
  • To understand the specifications correctly, always refer to the manufacturer’s guidelines for your particular UPS system.

Solar Panel Connection with UPS

Solar panels can be seamlessly integrated with UPS systems to ensure a consistent power supply during grid failures and to maximize solar energy use. This can be achieved in two primary ways: Solar UPS and Regular UPS.

Solar UPS

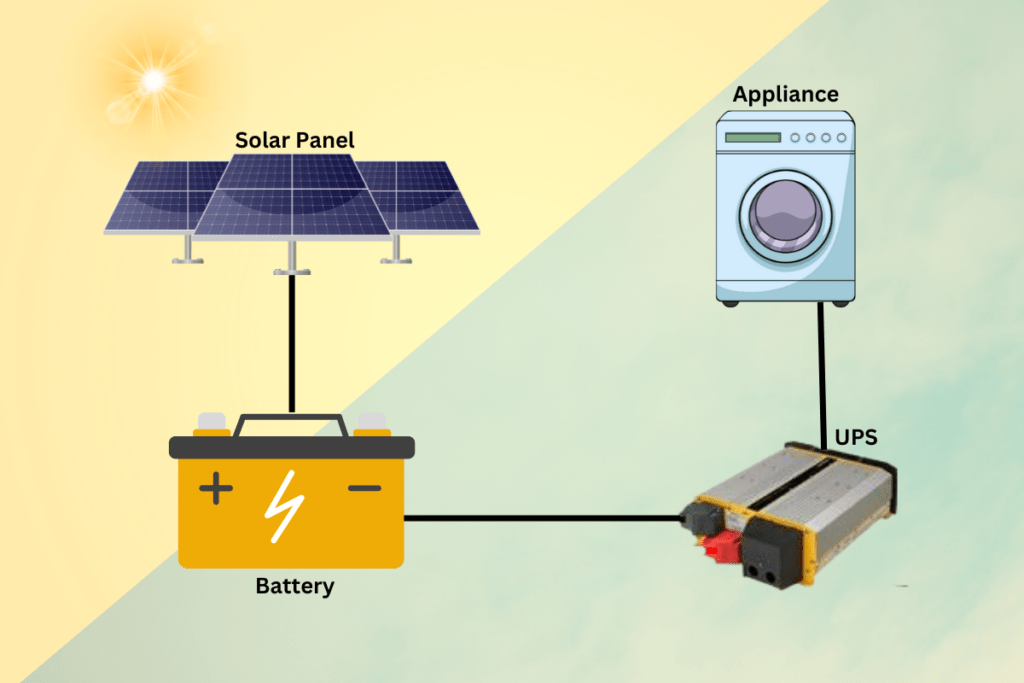

Solar Panel Connection with UPS 1

This system is specifically designed for solar energy. It comes with an integrated solar charge controller, allowing for the direct charging of the UPS battery from solar panels. A hybrid version can utilize both solar and grid electricity for charging.

While both a solar UPS and a solar inverter convert DC to AC, the distinction lies in their design: a solar UPS incorporates an inverter, while standalone inverters often necessitate an external charge controller.

Steps for Solar Panel Connection with Solar UPS

1. Energy Assessment: Determine your energy use and identify any gadgets that require backup power.

2. Solar Panel Installation: Arrange the solar panels so that they receive the most sunshine.

3. Solar UPS Integration: Connect the solar panels to the Solar UPS directly. It will regulate power flow and battery charging due to its in-built charge controller.

4. Configuring Power Priority: Some solar UPS systems can switch between solar and grid power based on solar output. Adjust the settings accordingly.

5. Device Connectivity: Connect your gadgets to the UPS outputs.

6. Testing: Ensure that the solar panels are charging the UPS battery and that the UPS is providing constant power to the linked appliances during power outages.

Also See: How to Check Solar Panel Polarity

Regular UPS


A regular UPS can be modified for solar compatibility. The key modification involves adding a charge controller to ensure efficient solar charging of the battery. So, how to connect solar panels to existing UPS? Let’s find out.

Steps for Solar Panel Connection with Regular UPS

1. Energy Assessment: Determine your power requirements and the important devices.

2. Solar Panel Installation: Position the panels in a location that receives the most sunlight.

3. Charge Controller Configuration: Connect the solar panels to an external charge controller.

4. Battery Connection: Connect the controller to a solar battery to ensure that stored energy is accessible.

5. Inverter Configuration: Connect the solar battery to an inverter, which converts DC electricity to usable AC.

6. Regular UPS Connection: Connect the inverter output to a regular UPS.

7. Device Connection: Connect your important gadgets to the UPS outputs.

8. Testing: Confirm that the solar panels are charging the battery and that the UPS is delivering continuous power during grid outages.

Consideration for Grid-Tied Systems: If connected to the electrical grid, battery storage may be avoided. Grid-tied configurations, on the other hand, often disconnect during grid outages, protecting utility workers from backflow concerns.

Moreover, inspect the complete setup on a regular basis for maintenance. Pay attention to the battery’s health, the wiring’s integrity, and the overall system functionality.

By understanding the distinct mechanisms of UPS systems, you can effectively establish a solar panel connection with UPS, ensuring a continuous power supply.

Also Read: Solar Panel for Wyze Cam v3: Does it Work?

What are the Benefits of Connecting Solar Panels with UPS?

Before learning about whether off grid solar systems work without batteries, let us learn about the several benefits of connecting solar panels with UPS which are as follows:

1. Uninterrupted Power Supply: The primary advantage is its capacity to maintain a consistent power flow even during grid outages. This proves critical for important equipment like security systems, medical devices, and communication tools that require uninterrupted operation.

2. Enhanced Energy Management: By storing surplus solar energy in UPS batteries, you can effectively manage solar power usage. The extra electricity produced can be stored for later use, minimizing reliance on the grid and potentially saving a few extra bucks.

3. Environmental Impact Reduction: Solar panels produce electricity without causing greenhouse gas emissions, promoting cleaner energy sources. When coupled with UPS systems, this solar energy system helps in improving sustainability efforts by minimizing the need for fossil fuel-driven backup generators.

4. Economic Advantages: Despite the initial upfront cost, the long-term benefits can make the system financially rewarding. Over time, the setup will help in savings from reduced electricity bills and potential incentives, making it a sustainable investment.

Also Read: How to Check If Inverter is Charging Battery

Can Off Grid Solar Systems Work without Batteries?

JAN23 What is Solar Battery 3

No, batteries are necessary to store electricity in off-grid solar power installations. If grid power is unavailable and batteries are not an option, an off-grid arrangement can still be achieved using other components. Instead of batteries, you’ll need the following:

1. Grid-Tied Solar Inverter: Designed to connect to the grid, this inverter converts solar energy into useful electricity without the use of batteries.

Additionally, check out these 13 Best Grid Tie Inverter with Battery Backup.

2. Generator: To give a reference voltage to the grid-tied solar inverter, a diesel generator or another electrical power generator is required.

3. Zero Export Devices: This device controls the amount of electricity generated by the grid-connected solar inverter based on the load needs. It also assures that the generator runs at a load of at least 30%.

It is difficult to go off-grid without batteries. Nonetheless, with a solar panel connection with UPS, this configuration allows you to use solar power throughout the day and rely on the generator when needed, saving fuel. If chemical batteries are not suitable, alternate electrical storage techniques such as gravity batteries or other non-chemical means should be considered.

Remember that, while the primary role of an off-grid inverter is to charge batteries with its DC output, its function adapts in the absence of batteries and remains critical in the system.

Solar panel connection with UPS offers a robust framework for consistent and reliable energy, even during grid failures. This pairing reduces the impact of power outages as they can operate without storage solutions. To maximize their potential, meticulous planning, expert advice, and precise installation are crucial for constant energy flow, regardless of external factors. For more solar content, keep scrolling through our blog posts.
