Jinko Solar Panels are currently the largest producer of solar panels all around the globe. It is not only popular because of its market but also due to the excellent products they manufacture. It is one of the few significant solar businesses with domestic production facilities, enabling it to avoid import tariffs and provide its panels at market-competitive rates. But how do Jinko Solar’s panels compete? What are Jinko solar panels 400w specifications? In this in-depth analysis of the Jinko solar panels review, we’ll respond to both of those queries as well as many others.
Jinko Solar Panels Review
Currently the largest producer of solar panels in the world, Jinko Solar has a solid track record of creating solar panels that are both dependable and affordable for use in both residential and commercial uses. With the new Tiger series panels, Jinko Solar is promoting the switch to higher-performance N-type cells, building on a number of innovations and efficiency marks for solar cells that have established the company as a leader in the field of research and development.
Jinko Solar Panel Specifications
| Power Rating | 350w – 620w |
| Efficiency | 19.9% – 22.3% |
| Cell Technology | P-type, N-Type, TOPCon |
| Price level | Low-mid |
| Most Popular Panel | Tiger Pro 415W |
| Product Warranty | 12, 15, or 20 years |
| Service and Support | Very Good, 4.5 out of 5 |
Also See: Jinko vs Sunpower Solar Panels
Jinko Solar Panel Range
Before moving into the Jinko solar panels review, let us learn about the range of Jinko Solar panels. Jinko provides a selection of panels made for residential, commercial, or utility-scale solar installations, similar to the majority of major PV makers. For larger MW scale systems, they can also modify panel designs and formats to suit particular uses. The following are included in the Jinko panel lineup:
- Cheetah: inexpensive, small, and basic panels
- Tiger: Mid- to high-performance screens that are small
- Tiger Pro: large screens with mid- to high-performance
- Tiger Neo: High-performance panels for household, office, and industrial applications
Typically, solar installers would characterize Jinko Solar as offering high-quality, reasonably priced entry-level panels. Jinko creates panels based on standard mono PERC cells using P-type silicon, much like the majority of rival producers.
However, Jinko recently made a push into the high-performance category with the introduction of the Tiger series, which is based on N-type cells of greater purity. Since many value-level manufacturers, such as Jinko and Trina, have developed more affordable N-type silicon cell manufacturing techniques, they have entered the race. The majority of premium panel manufacturers, such as SunPower, LG, Panasonic, and REC, have been producing panels based on N-type cells for years.
Jinko Solar Panels Efficiency
The efficiency of a solar panel refers to how well it absorbs sunlight and converts it into useful energy. Under the same conditions, an efficient solar panel will produce more energy than a less efficient panel. This is the main justification for favoring a greater efficiency rating.
In this part of the Jinko solar panels review, let us learn about the Jinko solar panels efficiency. The various versions of the Jinko Solar panels affect their efficiency. Although Jinko solar panels efficiency ranges from 18.67% to 21.33%. With an efficacy of about 21.16% in May 2022, Jinko Solar’s Eagle G4 was one of the most effective solar panels. The Tiger Neo is a panel from Jinko Solar that was made specifically for solar fields and has an efficiency of 22.30%. As a result, Jinko Solar dominates the competition thanks to its high efficacy. The versions made by Jinko Solar are listed below along with their efficiency level:
| Series | Max Efficiency |
| Eagle G4 | 21.16% |
| Eagle G5 | 21.14% |
| Eagle G2 | 19.78% |
Also Read: What is Conversion Efficiency?
Jinko Solar Panels Price
One of the major aspects of Jinko solar panels review is the Jinko solar panels price. The majority of Jinko Solar PV systems are typically priced between $2.25 and $2.97 per watt for a reasonable deal in the market for home solar.
Jinko Solar Panels Warranty
Whenever someone purchases a product they go through the warranty, which is one of the most significant parts of review. Similarly, in this part of the blog, you will learn about the Jinko solar panels warranty.
The Tiger panels from JinkoSolar were the first to come with an extended 30-year performance guarantee in addition to a 15 or 25-year product warranty. The high-purity N-type panels are guaranteed to continue operating at a minimum of 87.4% of the rated power after 30 years, which equates to a very low loss of 0.4% per year of use because of the reduced rate of light-induced degradation (LID). The majority of the N-Type bifacial panels have a 15-year guarantee, while the new, all-black Tiger Pro panels have a 25-year warranty.
In a rare event, we saw the most recent Tiger Neo product’s warranty term cut from 15 years to 12 years. This is extremely unusual because most makers, including Jinko, usually lengthen the product warranty period as newer, more sophisticated modules are released.
Given the challenging environmental circumstances solar panels are subjected to all year long, the less expensive Tiger P-type panel performance warranty still guarantees a minimum of 83.1% after 25 years. The product guarantee for Tiger P-types is 12 years. The older Cheetah series continues to be covered by the industry-standard 12-year product warranty and 25-year performance warranty, with a baseline power output of 83.1% and a maximum degradation rate of 0.62% annually.
Jinko Solar Panels 400W Specification
As you have learned about the background of the Jinko solar panels review, let’s learn about the Jinko solar panels 400w specification. The 144 5-busbar Diamond Mono PERC half-cells in the Jinko Solar Eagle 72 JKM400M-72HL-V HM G2 solar panel are PID Free and shade resistant. They have an IP67 Rated Junction Box for durability in outdoor settings and are certified for heavy snow (5400Pa) and wind (2400Pa) loads. With the UL and IEC certification of the Jinko Eagle 72’s high-voltage 1500V capability, you can run longer strings with reduced system balance costs and improved LCOE.
A 25-year linear power guarantee and a 10-year workmanship warranty are both offered with Jinko Eagle 72 HM G2 solar panels.
| Jinko Solar Model Number | JKM400-72-HL-V |
| STC Rating | 400W |
| PTC Rating | 371.4 |
| Open Circuit Voltage | 49.8 Volts |
| Short Circuit Current | 10.36 Amps |
| Frame Colour | Silver |
| Origin | USA |
| Power Tolerance | -0.7/+3% |
| Module Efficiency | 19.88% |
| Area | 21.66% |
| Weight | 49.6 lbs |
| Length | 79.06 in |
| Width | 39.45 in |
| Height | 1.57 in |
Also Read: Polycrystalline Solar Panel Specifications
Jinko Solar Panels Technology
The majority of Jinko’s solar panels have received approval from the Clean Energy Council for Australia’s home solar rebate scheme, the Small-scale Renewable Energy Scheme. Four-panel series are available from Jinko: the Swan, Eagle, Cheetah, and Tiger Series, which are described below:

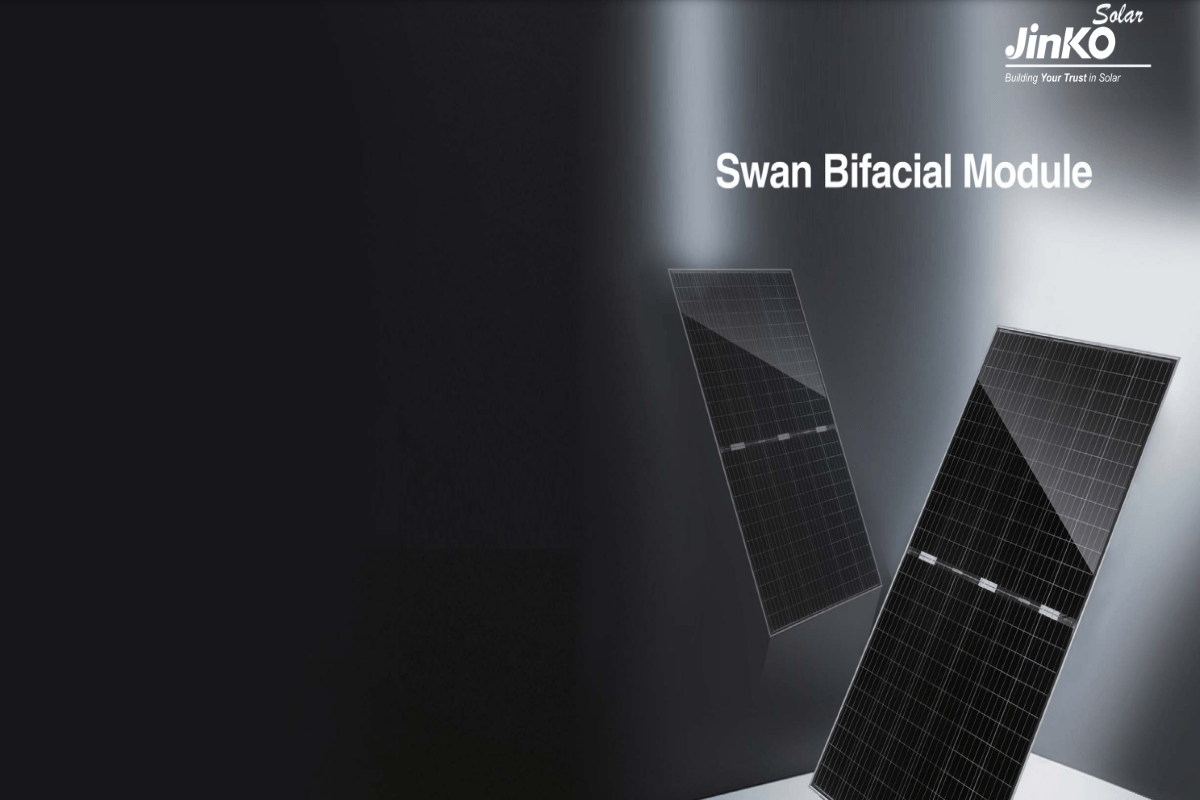

1. The Swan Bifacial Series
a. The Swan Bifacial Series, which consists of 5 busbar solar cells and uses a novel technology to increase solar panel module efficiency, looks better and is ideal for rooftop installation.
b. It is intended for high voltage systems of up to 1500 VDC and has excellent Anti-PID performance, which guarantees limited power degradation for mass production while saving BOS costs.
c. The 30-year linear power warranty with a 0.55% yearly power degradation rate and the lightweight construction for simple installation and minimal BOS costs.
d. Typically, the module power rises by 5% to 25%. (per different reflective conditions) Higher IRR and reduced LCOE also equate to superior performance in low-light conditions.
Also Read: What is Potential Induced Degradation?
2. The Cheetah Series
a. The Cheetah Series, which consists of 5 busbar solar cells, uses new technology to increase module efficiency and provides a more appealing aesthetic, making it ideal for rooftop placement.
b. They reduce BOS expenses and produce better LCOE with a higher module conversion efficiency (up to 20.74%) because they are UL and IEC 1500V certified. Their outstanding Anti-PID performance ensures minimal power loss for mass production, and their cutting-edge glass and cell surface textured design guarantees excellent performance in low-light conditions.
c. This solar panel has a product guarantee of 15 years and a 30-year performance warranty with a degradation of 1% in the first year and 0.4% per year after that.
3. The Tiger Series
a. The Tiger Series is Jinko’s most effective screen for the Australian market and makes use of its cutting-edge technology.
b. The Tiger Series cell technology is available in both the more popular P-type and the stronger, longer-lasting N-type, both of which have 30-year performance warranties and only 0.4% yearly degradation rates after the first year.
c. A stylish choice for a residential roof space is the “All Black” option for the 66 cell panels.
Also See: REC vs Q Cell Solar Panels

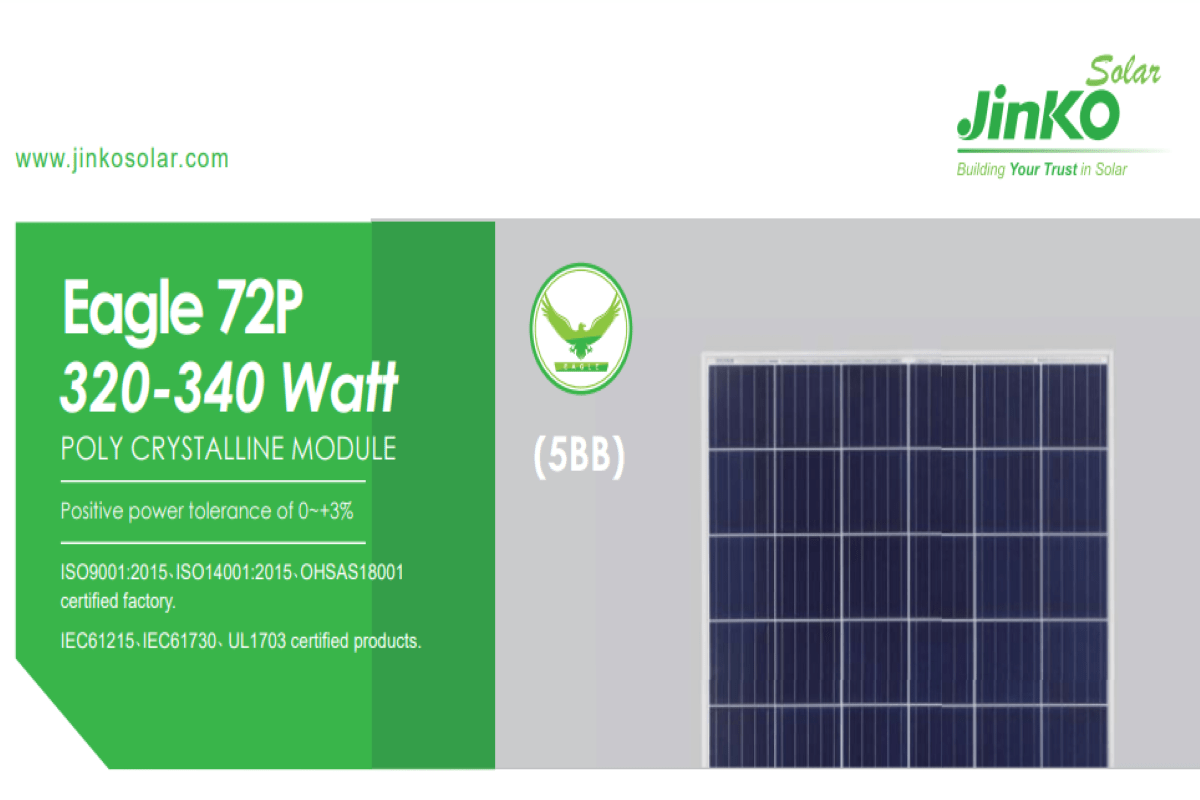

4. The Eagle Series
1. The most affordable panel in Jinko’s selection of Aussie solar panels is the Eagle Series.
2. Under highly strict testing conditions, the Eagle Plus module conversion efficiency is guaranteed with limited power degradation induced by the PID effect. PERC technology was first developed at UNSW.
3. The highly effective performance in low-light environments and high salt mist and ammonia resistance verified by TUV NORD is made possible by advanced glass and solar cell surface texturing.
Are Jinko Solar Panels Good?
Yes, Jinko Solar Panels are good. Jinko Solar is one of the few manufacturers that have been consistently listed among the top performers for the past six years. This company is currently rated in the PV Evolution Labs Top Performers across 4 of the 6 annual tests. This is a reliable sign that they are a pioneer in the photovoltaic sector.
