When it comes to connecting electronic devices, there are two main methods- AC coupling and DC coupling. These two have different advantages and applications, and understanding the differences between them is key to optimizing your electronic system for your specific needs. So, let’s explore AC vs DC coupled batteries, storage, and oscilloscope.
AC Vs DC Coupled: Battery Storage, Oscilloscope, and Termination
If you think terms like AC and DC seem like incomprehensible technical jargon, then you are not alone. These fundamental concepts significantly impact the performance of a circuit. Therefore, it is necessary to understand the underlying differences.
In AC coupling, a capacitor is used to block any DC (direct current) component of a signal and allow only the AC (alternating current) component to pass through. This is useful in cases where the DC component is unwanted or can cause distortion in the signal. For example, in an audio signal, DC coupling can cause a popping sound, which can be eliminated by using AC coupling.
In DC coupling, there is no capacitor used to block the DC component, and the entire signal (both AC and DC components) is allowed to pass through. This is useful in cases where both AC and DC components are required. For example, in a power supply circuit, both the AC and DC components are necessary to power the device. One issue with a significant DC offset is that it might degrade the instrument’s resolution to unacceptable levels. Keep on reading to know about AC vs DC coupled battery storage and termination.
AC Vs DC Coupled Battery Storage

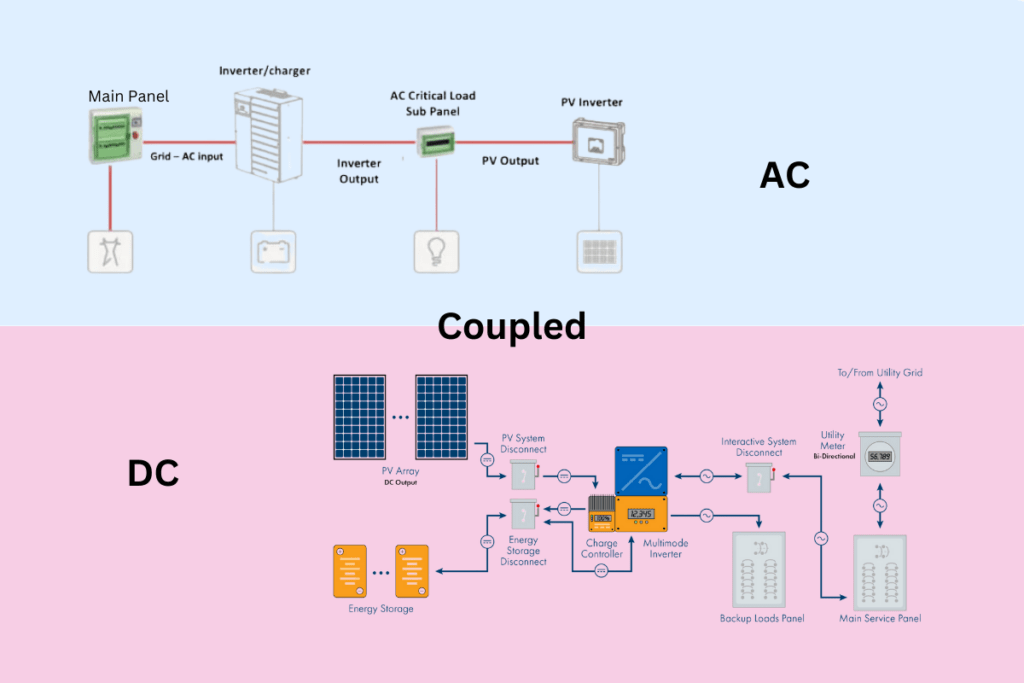

When it comes to battery storage systems, AC and DC are two different methods of connecting a battery to any solar system. Due to their distinct advantages, both are suitable for different applications. Here is what you need to know about AC vs DC coupled batteries.
1. AC Coupling
In an AC-coupled system, the electricity generated by your solar panels is first converted from DC to AC by an inverter so that it can power your home. If there is extra electricity that is not needed at the moment, it is transformed back to DC and stored in your solar battery. When you need that stored energy later, it goes through another conversion from DC to AC before it can be used safely in your home appliances.
So, in an AC-coupled system, any electricity stored in the battery has to go through three conversions before it can be used.
AC coupled batteries, also known as AC batteries, represent a recent advancement in grid-connected home storage. These batteries include a lithium battery module, a battery management system (BMS), and an inverter/charger, all combined into a compact and straightforward unit. This simplicity makes them highly suitable for easy installation in various homes, particularly when upgrading battery storage systems.
Here are a few other advantages of AC-coupled battery systems-
- Reliability: Battery failures will not have a direct influence on the overall solar energy generation in an AC-linked system.
- Retrofit: AC-linked batteries are simple, compact, and easy to install. They may be easily fitted to any existing home’s solar panel system and allow for steady growth.
- Flexibility: AC coupling allows for greater flexibility and compatibility with different types of inverters and batteries.
2. DC Coupling
DC coupling is the simpler of the two methods, where the solar panels are directly connected to the battery bank without the use of any additional equipment. This means that the batteries will receive the full DC voltage and current from the solar panels. DC coupling is often used for smaller systems that do not require complex equipment or large amounts of power. Unlike AC coupling, DC coupling results in less energy conversion loss.
These are some advantages of DC-coupled battery systems-
- Affordability: Because the battery and panels share the same inverter, a DC-coupled system is more likely to be less expensive.
- Efficient: DC-linked systems are up to 3% more efficient than AC battery systems. This is because, unlike AC coupling, DC coupling inverts the current once, thus making your complete PV system more cost-effective.
Therefore, in AC vs DC coupled battery storage, DC coupling is simpler and more efficient but may be less flexible in certain situations. On the other hand, AC coupling is more versatile but less efficient due to the energy losses involved in the conversion process.
Also Read: Exploring the Pros and Cons of Solar Battery Storage
AC Coupled Vs DC Coupled Oscilloscope
AC coupling and DC coupling are two different coupling modes that determine how the oscilloscope processes the input signal. Below we have mentioned the key differences in AC-coupled vs DC-coupled oscilloscopes.
1. AC-Coupled Oscilloscope
AC-coupled oscilloscopes are designed to measure AC voltages and are often used to measure signals with high-frequency components. The AC coupling capacitor blocks any DC component of the signal and only allows the AC component to pass through to the oscilloscope. This can be useful for measuring AC waveforms or for removing any DC offset in a signal. An example of where an AC-coupled oscilloscope might be used is in measuring the output of an audio amplifier, which generates an AC audio signal.
Also See: How to Calculate Solar Panel KWp (KWh Vs. KWp + Meanings)
2. DC-Coupled Oscilloscopes
DC-coupled oscilloscopes, on the other hand, are designed to measure both AC and DC voltages and are often used to measure signals with low-frequency components. These oscilloscopes do not have an AC coupling capacitor and can display the entire signal, including any DC offset. An example of where a DC-coupled oscilloscope might be used is in measuring the output of a power supply, which generates a DC voltage. This sums up the AC-coupled vs DC-coupled oscilloscope. After understanding AC coupled vs DC coupled oscilloscope, let’s also see AC vs DC coupled termination in LVDS.
Also Read: How to Calculate Inverter Battery Backup Time
AC Vs DC Coupled Termination LVDS
When we talk about AC vs DC termination, we are actually talking about LVDS termination methods for AC and DC coupling.
1. DC-Coupled LVDS Termination
In DC-coupled LVDS (Low-Voltage Differential Signaling), there are two termination schemes. These are direct parallel termination across the receiver input terminals and split termination with a ground-connected center-tapped capacitor.
When there is no excessive skew between each side of the channel, the parallel resistor method is used, and the receiver can easily filter common-mode noise. In the presence of skew, the split termination approach uses a capacitor to provide a low-impedance route to the ground for common-mode noise and the AC component of the signal. In both circumstances, the desired signal level is formed across the resistors.
Also See: Connecting Solar Panels in Series Vs Parallel
2. AC-Coupled LVDS Termination
Capacitors along the transmission line in AC-coupled LVDS eliminate any DC offset along the transmission line. At the receiver end of the board, termination circuitry restores the common-mode DC offset voltage to the required value. When substantial common-mode noises are present along the connection, or when big ground offsets are predicted (equivalent to a large DC common-mode noise), this can be used.
While AC coupling is often used to filter out unwanted DC components, DC coupling offers a simpler and more efficient method of transmission. We hope with this comparison between AC vs DC coupled storage, termination, and oscilloscope you are able to make informed decisions.
